HPH Housing
High Pressure Housing for Temposonics® Position Sensors
These explosion proof enclosures - High Pressure Housings - are UL & cUL or ATEX-IECEx approved for use in hazardous locations with Temposonics position sensors. The ATEX, UL and cUL approvals cover flammable gases, vapors and liquids and the ATEX-IECEx also covers dust.
These housings are made to fit Temposonics G-series sensors with analog and start/stop outputs, R-series sensors with analog and digital outputs, the L-series Start/Stop sensors as well as the S-series ServoSensor. Both integral cable and connector versions can be used.
When using a standard sensor in this housing you get a cost efficient solution for use in hazardous locations which also allows easy sensor replacement.
Several design combinations are available to fit your application:

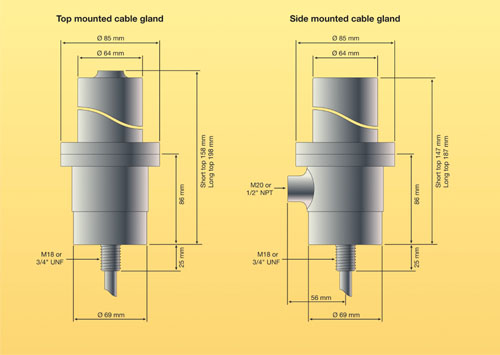

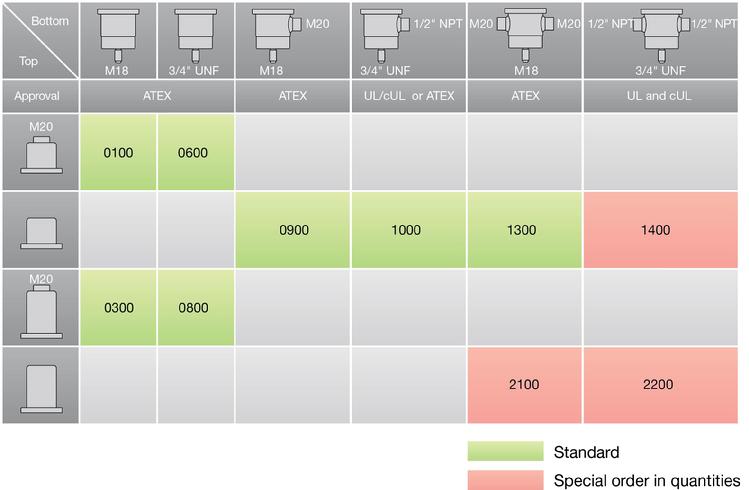

M18 or 3/4"UNF Mounting flange thread - M20 or ½"NPT opening thread - long or short top - top-mounted, side-mounted, or dual side-mounted openings. See Combination Chart in the downloadable pdf-datasheet.
All parts are made from 316L Stainless steel.
The housing is also available in non-approved versions ensuring an outstanding protection to the sensor when used in rugged applications with high humidity and aggressive gases.
The housings are sold in the US by Summit USA, LLC in Lake Charles, LA and by Temposonics, LLC in Cary, NC and their distributors.
The UL / cUL approved versions are assembled and tested in USA by Oilqiup, Inc. The ATEX approved versions are made in Denmark by Summit Electronics ApS
Technical data:
Housing:
Protection type:
| ATEX-IECEx: |
IECEx TUN 13 0011 X II 1/2 G Ex d IIC T5 Gb Tamb -40º to +70ºC II 1/2 D Ex tb IIIC T100C Db 0044 TÜV 13 ATEX 121172 X In accordance with: IEC 60079-0:2011, IEC 60079-1:2007, IEC 60079-26:2006, IEC 60079-31 EN 60079-0:2009, EN 60079-1:2007, EN 60079-26:2007, EN 60079-31:2009 |
| UL / cUL: | Design combinations 1000, 1400 and 2200
only. Class 1, Division 1, Groups A, B, C, and D Hazardous locations, |
As to fire, electrical shock and explosion hazards only
UL certificate #: 2PD0 In accordance with UL 1203 standard
Only with ATEX or UL approved cable glands
| Material: | Stainless steel ANSI 316 L (standard no1.4404) |
| Opening thread: | M20 or ½" NPT |
| Ingress protection code: | IP 68 |
| Approved sensors: |
R-series analog R-series Profibus R-series CANBUS R-series SSI R-series DeviceNet S-series ServoSensorTM L-series Start/Stop G-series analog G-series Start/Stop |
| Rod: | |
| Material: | Stainless steel AISI 316 L (standard no. 1.4404) |
| Mounting flange: | M18 x 1,5 or ¾"–16UNF–3A |
| Pressure rating: | 350 Bar (continuous) |
| Peak pressure: | 530 Bar |
| Magnet type: | GF plastic with permanent magnet |
| Level measurement: | Float on request |
Electrical specification:
| Supply Voltage: | 24VDC / 150mA maximum ServoSensorä relay contacts 3.6A maximum |
| Operating temperature: | -40° C to +60° C (-40° F to 140° F) |
Certificates & Listings
| Download ATEX Certificate | Links to the listings on UL's website: FTRV (USA) FTRV7 (Canada) |
| IECEx Certificate |
